Automatic Metallographic Grinding Polishing Machine Support Single Point and Center Pneumatic Pressure
Brief Introduction:

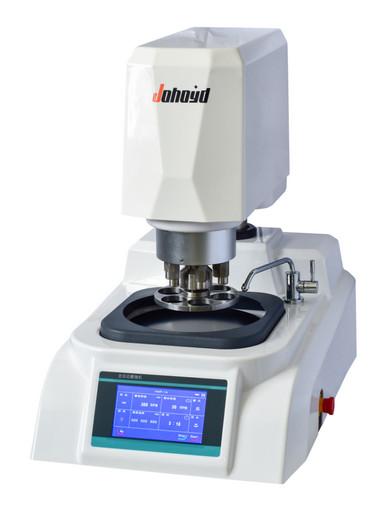

Iqualitrol HMP-1AB is a single-disc automatic grinding and polishing machine integrating pre-grinding, grinding and polishing. It adopts single chip microcomputer technology to control through touch screen, the grinding and polishing disc is driven by DC brushless motor, V-belt is used for transmission, the grinding head is driven by stepping motor, and the synchronous belt is used for transmission.
Iqualitrol HMP-1AB has the characteristics of stable rotation, low noise, long life, safety and reliability; You can adjust the rotation speed of the grinding head and the grinding and polishing plate according to the user's needs, set the pressure, set the sample preparation time, and adapt to different needs;
Iqualitrol HMP-1AB comes with a lighting system, which is convenient to take and place samples; comes with a cooling device, which can be used during grinding cool the sample to prevent damage to the metallographic structure due to overheating of the sample. It is an ideal choice for metallographic sample preparation equipment in factories, scientific research units and laboratories of universities and colleges.
Technical Specifications:
| Product model |
HMP-1AB |
| Number of grinding discs |
1 |
| Diameter of grinding and polishing disc |
254mm |
| Rotation speed of grinding and polishing plat |
stepless speed regulation 100-1000r/min
quick set four-speed 300/500/800/1000r/min
|
| Rotation direction of grinding and polishing disc |
Forward and reverse |
| Grinding disc motor power |
1.1KW |
| Rotation direction of grinding head |
Clockwise |
| Rotating speed of grinding head |
0—150r/min |
| Grinding head motor |
Stepping motor 200W |
| Grinding head locking method |
automatic |
| Timing adjustable time |
0-99min |
| Pressure adjustment method |
Automatic pressure regulation inside the system |
| Pressurization method |
Single point pneumatic pressure and center pneumatic pressure |
| Pressurized pressure |
Center: 0-150N (common range 40-120N) Single point: 0-90N |
| Number of specimen clamps |
6 |
| Clamping sample thickness |
8-22mm (can be customized) |
| Specimen clamping specifications |
Standard Ф30, (Ф22 Ф30 Ф45 any specifications are optional, special specifications can be customized) |
| power supply |
220V 50Hz |
| Total power |
1.8KW |
| Appearance size |
475*660*710mm |
| weight |
80kg |
