Water Cooling Metallographic Grinding And Polishing Machine 200mm Diameter

Name: Water Cooling Metallographic Grinding And Polishing Machine 200mm Diameter
Brand: iqualitrol
Price: 1 USD

Quality Water Cooling Metallographic Grinding And Polishing Machine 200mm Diameter wholesale

Brand Name : iqualitrol

Model Number : Mopao-260E

MOQ : 1 Set

Payment Terms : T/T

Supply Ability : 50 Sets per Month

Delivery Time : 20 Working Days

Packaging Details : Plywood Box

Model : Mopao-260E

Diameter : 200mm (Opt. 250mm)

Speed : 50-600rpm

Rotate Direction : Clockwise/Anti-clockwise

Disc Qty : 2

Power : AC220V/50Hz/1Ph, 550W

Contact Now

Water Cooling Manual Metallographic Grinding and Polishing Machine Stepless Speed 50-600rpm

Brief Introduction:

iqualitrol Mopao-260E is applicable to rough grinding, fine grinding and polishing of metallographic samples, it has microprocessor control system, with a speed of 50-600rpm.

The machine is an indispensable equipment in making the metallographic sample, and has a cooling device to cool the sample during grinding and polishing, thus preventing the damage of the metallographic structure caused by overheat.

Mopao-260E is easy to use, safe and reliable, an ideal preparation equipment for the labs of factories, research institutes and universities and colleges.

Technical Specifications:

Model	Mopao-260E
Disc Diameter	203mm (Opt. 250mm)
Rotation speed	50-600rpm
Rotate Direction	Clockwise/Anticlockwise
Power Supply	AC220V/50Hz/1Ph
Disc Quantity	2
Power Consumption	550W
Dimension	725x710x310mm
Net weight	50kg

Product Tags:

AC220V Metallographic Grinding And Polishing Machine

Metallographic Grinding And Polishing Machine 200mm

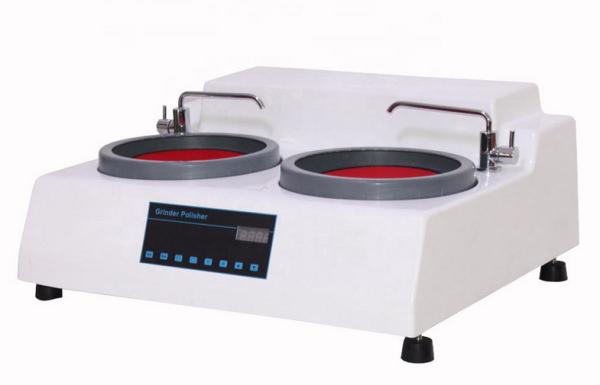

Water Cooling Metallographic Grinding And Polishing Machine 200mm Diameter Images
