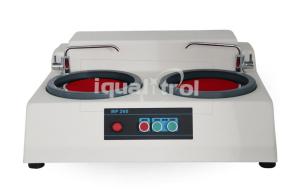

Water Cooling Double Disc Metallographic Grinding and Polishing Machine with Two Speeds
Brief Introduction:
iqualitrol double-disc Mopao-260 is applicable to rough grinding, fine grinding and polishing of metallographic samples. The machine has two-step constant speed of 300rpm and 600rpm with wide application.
Mopao-260 is an indispensable equipment in making the metallographic sample, also has a cooling device to cool the sample during grinding and polishing to preventing the damage of metallographic structure caused by overheat.
Mopao-260 is easy to use, safe and reliable, an ideal sample preparation equipment for the labs of factories, research institutes and universities and colleges.
Technical Specifications:
| Model |
Mopao-260 |
| Disc diameter |
203mm(Opt. 250mm) |
| Rotation speed |
300rpm/600rpm |
| Input voltage |
AC380V/50Hz/3Ph |
| Disc quantity |
2 |
| Disc control |
Single Controller |
| Input power |
370W |
| Dimension |
725 x710 x310mm |
| Net weight |
45kg |
The metallographic grinding and polishing machine made by iqualitrol has passed CE certification. It features a sturdy and durable cast aluminum base, equipped with high-precision spindle and transmission mechanism, which effectively absorbs vibration during grinding and greatly increases comfort in use.
It can obtain smoother grinding samples and reduce laboratory noise. The machine can be equipped with a fast magnetic adapter, compatible with various diamond grinding systems, facilitating quick switching of various grinding consumables and greatly expanding the scope of equipment applications.
The stainless steel ceramic faucet customized by a Taiwanese sanitary ware manufacturer is used to meet the special needs of metallographic grinding, including water flow rate and angle, while also being aesthetically pleasing and practical.
The drainage system adopts an anti-clogging triangular waterway design to solve the problem of clogging caused by grinding consumables for long-term users. We use the shortest waterway distance and angle design to reduce the probability of clogging.
The waterproof film panel has 9 sets of grinding and polishing parameter memory functions. Different grinding speeds, directions, and times can be set for different materials and requirements, which can be changed at any time to meet different grinding and polishing needs.
When used for automatic polishing, an automatic dripping device can be purchased to allow polishing consumables (diamond suspensions, alumina powder, final polishing liquid) to automatically drip onto the polishing disc according to the set time.
